SINOTRUK HOWO 4X2 300HP Big Capacity Compressed Rubbish Vehicle Garbage Compactor Truck
1--Garbage compressor Truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of Garbage compressor Truck : option for 3-20m3 garbage truck.
6--Steering wheel of Garbage compressor Truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of Garbage compressor Truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8--Truck chassis of Garbage compressor Truck: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specifications of howo Garbage compressor Truck
| Sinotruk Howo Garbage compressor Truck |
| Overall Dimension | 8,640×2,496×3,370mm | Gross Vehicle Weight | 16,000kg |
| Curb Weight | 11,700 kg | Loading Weight | 4,170 kg |
| Wheel Base | 4,600 mm | Front / Rear Axle | 6000 kg / 10000kg |
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, |
| Engine | Weichai WD615.97E |
| Engine horsepower | 300HP, EURO III |
| Max Driving Speed | 93 km/h |
| Gear Box | 10 Forward Gear, 2 Reverse Gear, |
| Tire | 12.00R20 16PR (6 pieces with one spare) |
| Garbage Bin | Capacity | 18-20CBM |
| Material | 4mm Carbon Steel for Garbage Bin Body |
| Design | Whole unit with Leakage Proof Design |
| Ways of Loading | Rear Loading with optional Bucket Lifting System |
| Garbage Compact Ratio | 1/3 - 1/4 |
| Control System | One control Panel on the back, One Control system in back of Cabin |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. |
| 2. Automatic loading, compressing and discharging, all handled by 1 person |
| 3. Sewage water collection tank to avoid any pollution during handling. |
| 4. Large Pressure, Good Leakage Proof, Convenient Operation |
| Dependable Security |
| 5. Electrical Control Panel for compacting system. |
| 6. Cycling time: 25~30s |
| Remarks | 1. Color is optional |
| 2. Customized LOGO painting as per customer request |

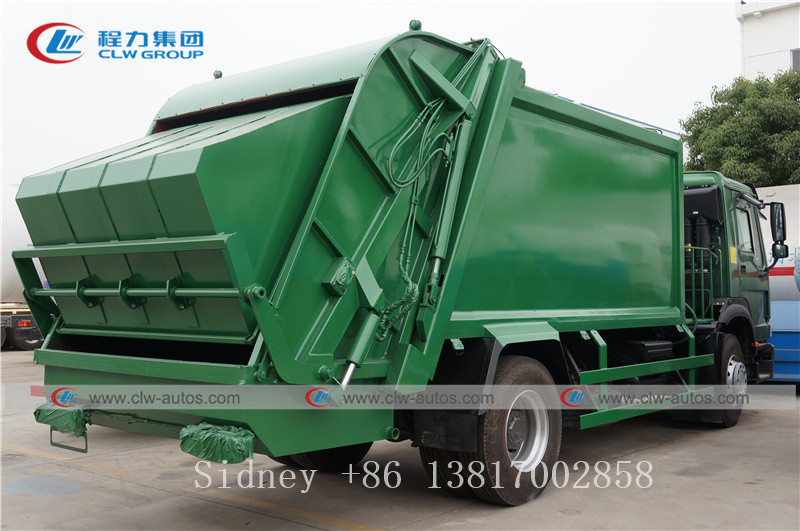

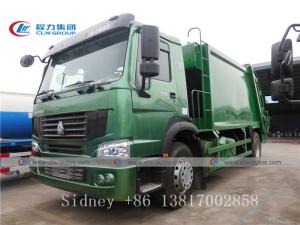

Pictures of howo Garbage compressor Truck

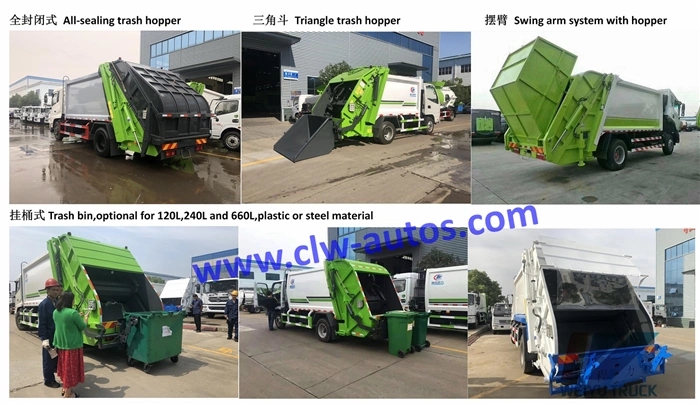

Different designs of Garbage compressor Truck
Truck Details of garbage compressor truck

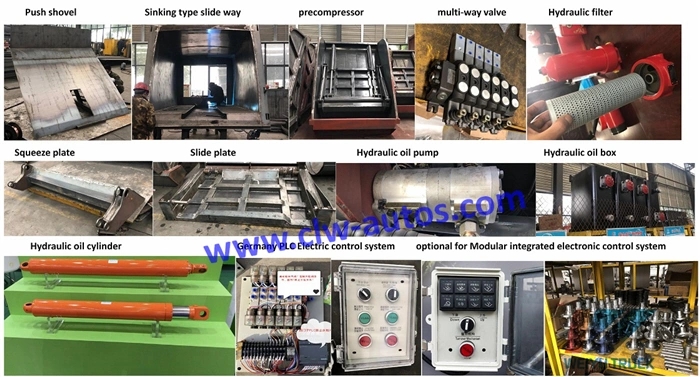

Import parts of garbage compressor truck

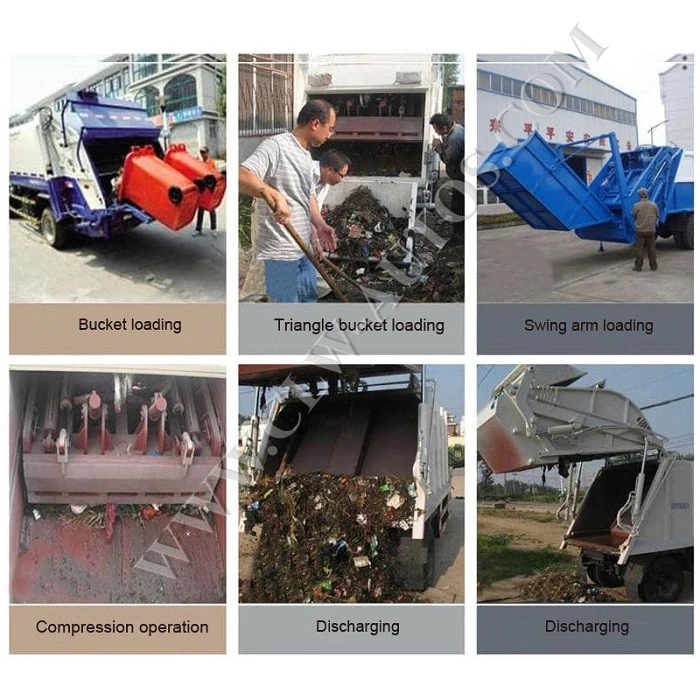

Working Show of garbage compressor truck

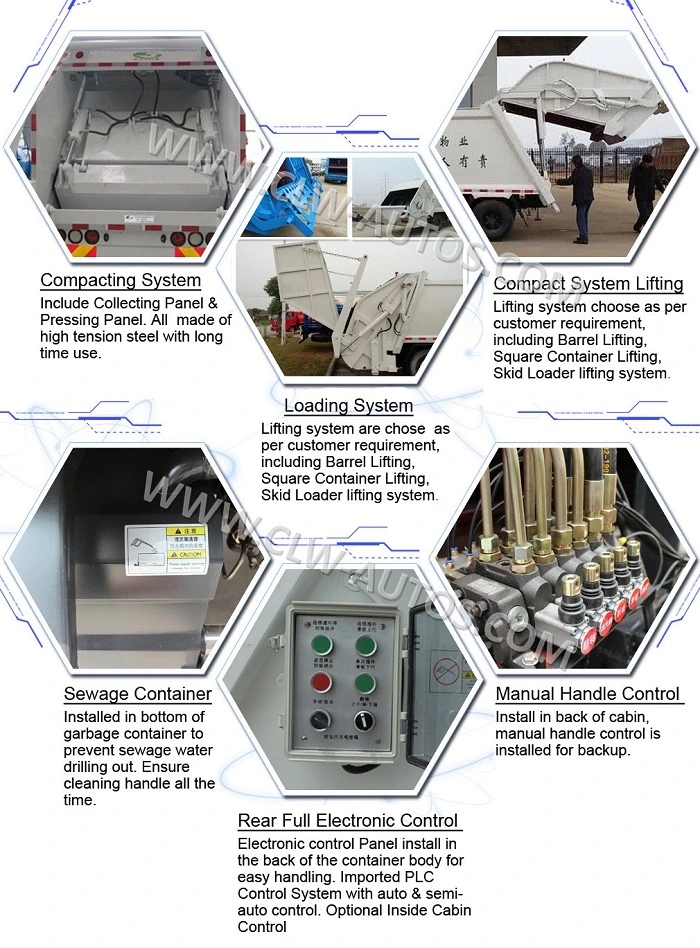

Structure Diagram
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of compactor garbage truck I can order from your company?
A: We can supply different size compactor garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of compactor garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for compactor garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Product Tags:
|
|
Sinotruk Howo 4X2 300HP Garbage Compactor Truck Images
|
